Graphite validation

Graphite is IRMA's most thoroughly exercised validation case, and for good reason: it is strongly anisotropic (the Debye-Waller factor along the c axis is about 6.6 times the in-plane value), it has a published ENDF/B-VIII.1 evaluation to overlay, it has a classic measured total cross section (Steyerl) below the first Bragg edge, and it can be driven through every one of IRMA's inelastic modes and both instrument geometries. The phonon calculation behind every directional result on this page is the published density-functional calculation of IG-110-type graphite: VASP with PAW potentials and the PBE functional, a 900 eV plane-wave cutoff, a 3×3×4 Monkhorst-Pack mesh, and force constants from the finite-displacement method on a 6×6×1 (144-atom) supercell in phonopy. The page follows the validation ladder: kernel verification against NJOY LEAPR, the one-phonon term against independent codes, the full thermal scattering law S(α,β) and the processed cross sections against OCLIMAX and the released evaluation, the measured total cross section, and finally the same phonon calculation driven end to end against measured VISION and ARCS spectra.

How to read the curve labels

Every figure on this page draws on the same set of calculations, so the curve labels are defined once here. IRMA mode 2 is the S(α,β) computed from the phonopy calculation with the exact coherent one-phonon term. IRMA mode 1 is its incoherent-approximation counterpart: the same directional Debye-Waller tensor, but no interference. IRMA mode 0 is the legacy isotropic kernel. Euphonic n = 1 is the independent coherent one-phonon reference on the same phonon calculation. OCLIMAX MAXO=1/223 are OCLIMAX runs truncated at multiphonon order 1 or order-matched at 223; at MAXO=1 two variants appear, the released code, whose coherent powder average uses a first-order Debye-Waller approximation, and an unreleased full-tensor build provided by the OCLIMAX author. ENDF/B-VIII.1 graphite+Sd is the released evaluation, generated with FLASSH from a different phonon calculation; +Sd marks the structure-dependent ("distinct") contribution, the coherent one-phonon interference. In terms of the scattering components included, an evaluation with Sd is the counterpart of mode 2: its one-phonon term carries both the coherent and the incoherent contribution. Evaluations without it correspond to mode 1, with the one-phonon term in the incoherent approximation.


Kernel verification against NJOY LEAPR

The classic kernels are verified first: IRMA reproduces the published ENDF/B-VIII.1 graphite tape (built-in graphite elastic, iel=1, with the continuous-phonon-expansion inelastic part) to a maximum relative difference of 3.4×10⁻⁵ in physically significant values of S(α,β), across all ten tabulated temperatures. The input files and reference tapes live in tests/native_LEAPR_NJOY_ENDF_validation/, and the methodology page gives the full reference set. Runnable graphite input files, in classic and generalized-elastic variants, are in examples/tsl/.


The coherent one-phonon term against Euphonic and OCLIMAX

The directional kernels have no LEAPR equivalent, so they are compared with independent calculations that start from the same phonon calculation, restricted to the one-phonon (n = 1) term on a 40³ phonon mesh. The compared quantity is the coherent part of that term, the piece all three codes compute. Euphonic computes only that part; IRMA computes the coherent and incoherent parts of its S(α,β) separately and exposes the components; OCLIMAX keeps only the coherent part when the incoherent cross sections in its material file (.oclimax) are set to zero. Two OCLIMAX variants enter the comparison: the released code, whose coherent powder average uses a first-order, almost-isotropic Debye-Waller approximation inherited from aCLIMAX, and an unreleased build provided by the OCLIMAX author that replaces it with the full anisotropic tensor. The unreleased build runs on the same inputs and differs only in that treatment; it appears only in this coherent comparison, and every other OCLIMAX result in the validation record uses the released code. Euphonic was evaluated at the IRMA (α, β) grid, OCLIMAX retained its own grid, and none of the plotted curves was regridded or energy-broadened.

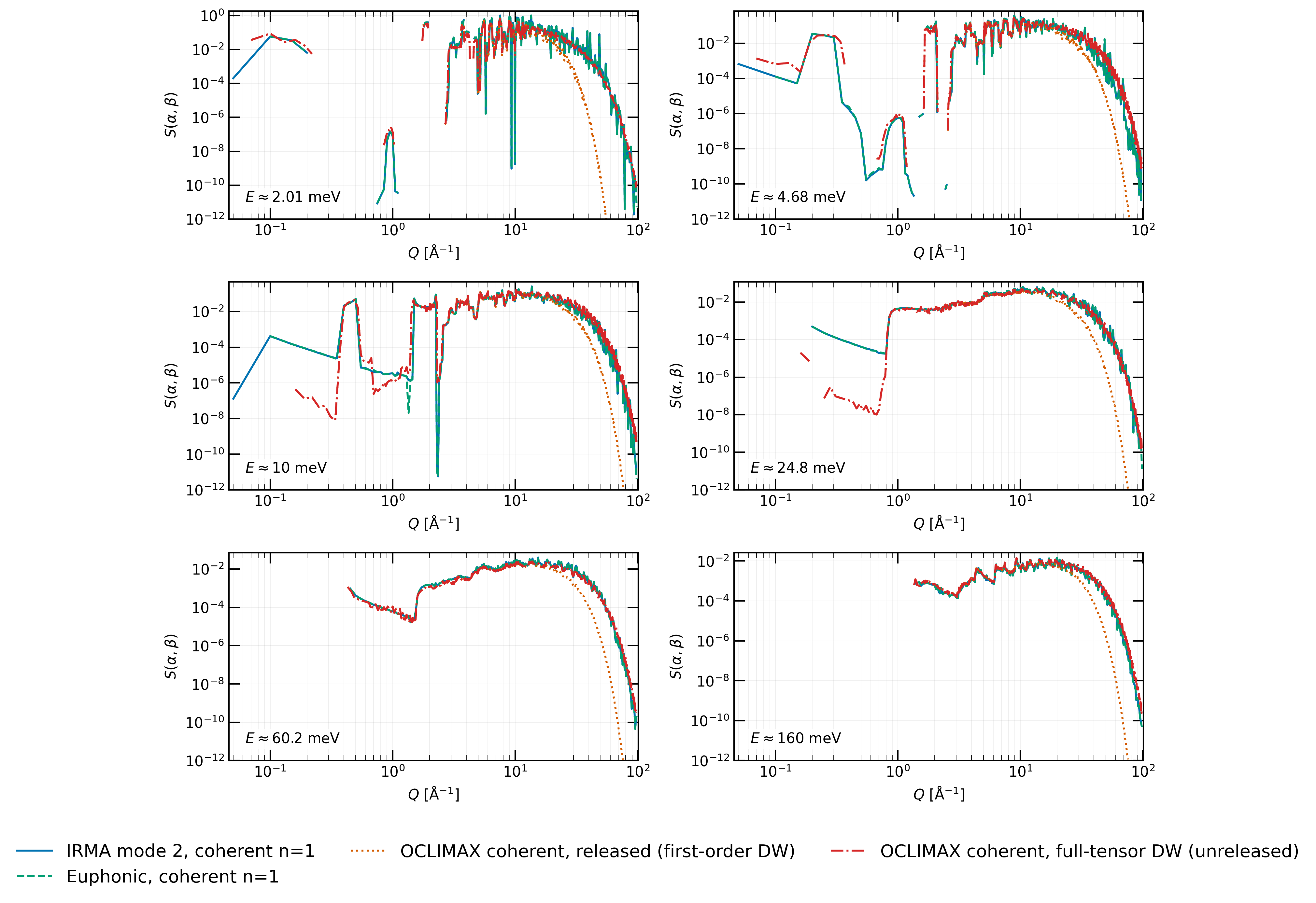

Coherent one-phonon isolation for graphite at 296 K

Fixed-energy cuts through the coherent one-phonon (n = 1) S(α,β) at 296 K: IRMA mode 2 (coherent component), Euphonic, and OCLIMAX with the incoherent cross sections set to zero, in the released (first-order Debye-Waller) and unreleased full-tensor variants; each curve at the nearest energy of its own tabulated grid, no broadening or regridding.

All four coherent curves coincide across the interference structure at low and intermediate Q, through the sharp maxima and the deep zeros alike. They separate at high Q: the released OCLIMAX falls away from the directional calculations, and the full-tensor variant stays with them. The first-order approximation was constructed for mildly anisotropic displacements; in graphite, where the c-axis Debye-Waller exponent is about 6.6 times the in-plane value and enters exponentially, its error compounds at high Q. Beryllium, nearly isotropic, is the control where all four curves stay together at every Q.

Quantitatively, the coherent comparison with Euphonic agrees to a median of 0.18% in the energy integral J(Q) = ∫S(Q,E)dE over Q ≤ 20 Å⁻¹, and the shared-domain integral ratio of the symmetric-form S(α,β) is 1.00001. Against the released OCLIMAX the coherent ratio is 1.04 below Q = 12 Å⁻¹ and grows to 1.9 over the full window as the first-order attenuation pulls the OCLIMAX S(α,β) down at high Q; with the full-tensor variant the same ratio is 1.02 over the whole window. The frozen Euphonic reference cases live in tests/mode2_euphonic_n1_validation/.

The full one-phonon term and its components

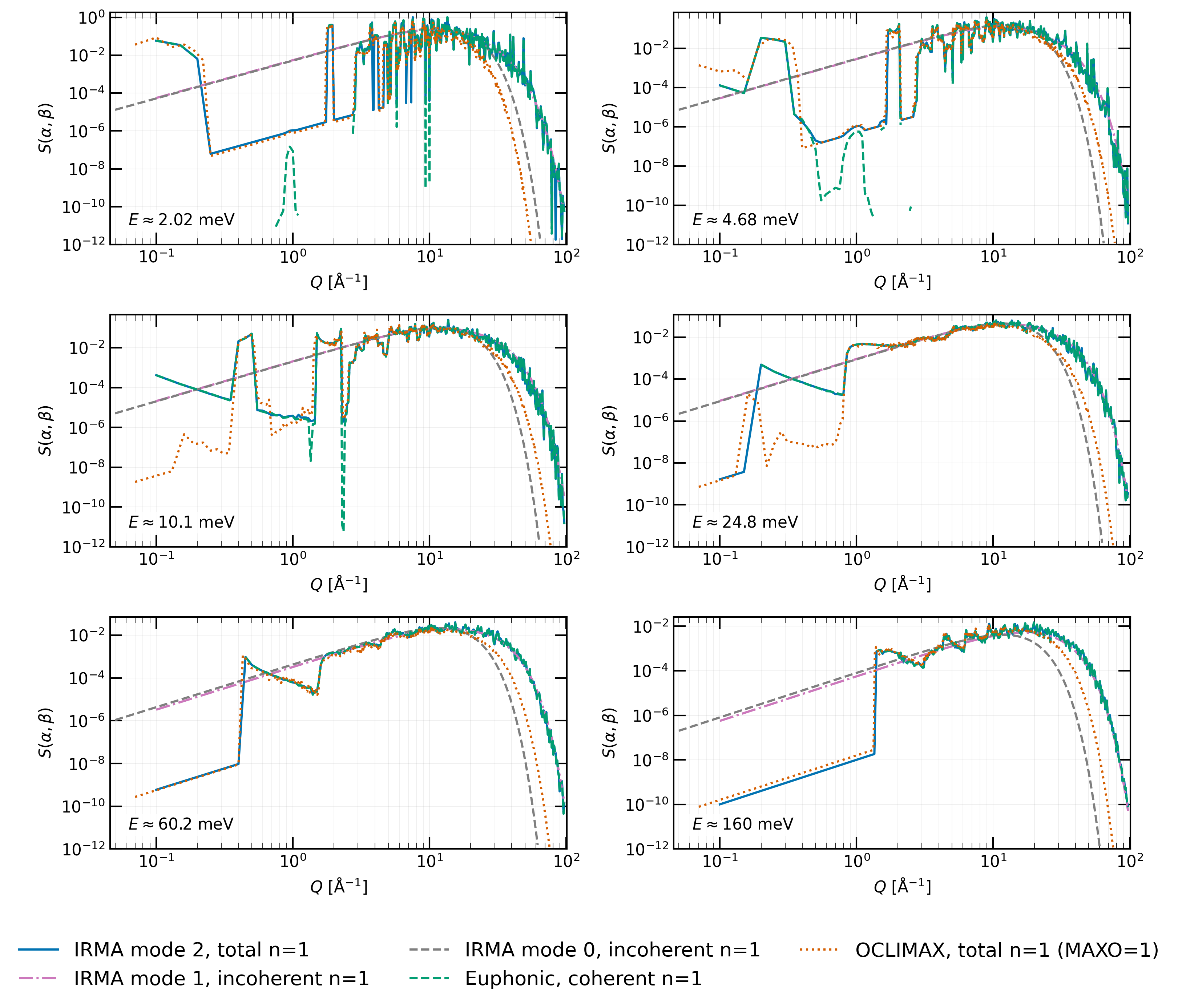

Fixed-energy cuts through the graphite n=1 S(α,β) at 296 K

Raw fixed-energy cuts through the graphite n = 1 S(α,β) at 296 K. Euphonic carries only the coherent one-phonon term; IRMA mode 2 and OCLIMAX MAXO=1 carry both one-phonon components; IRMA modes 1 and 0 are the incoherent counterparts.

Mode 2 and Euphonic coincide wherever coherent scattering dominates, including the sharp interference structure. Where the coherent component is nearly zero, Euphonic drops away and mode 2 rests on the small incoherent contribution it retains; the logarithmic scale makes this floor prominent. The mode-1 curve replaces the interference structure by its smooth average: it runs through the middle of the mode-2 oscillations at low Q and merges with mode 2 at high Q, where the interference washes out. The remaining two curves show the effect of the Debye-Waller convention: mode 0 attenuates with a fully isotropic exponent and the released OCLIMAX with its first-order approximation, and in graphite both fall below the directional curves at high Q, at different magnitudes.

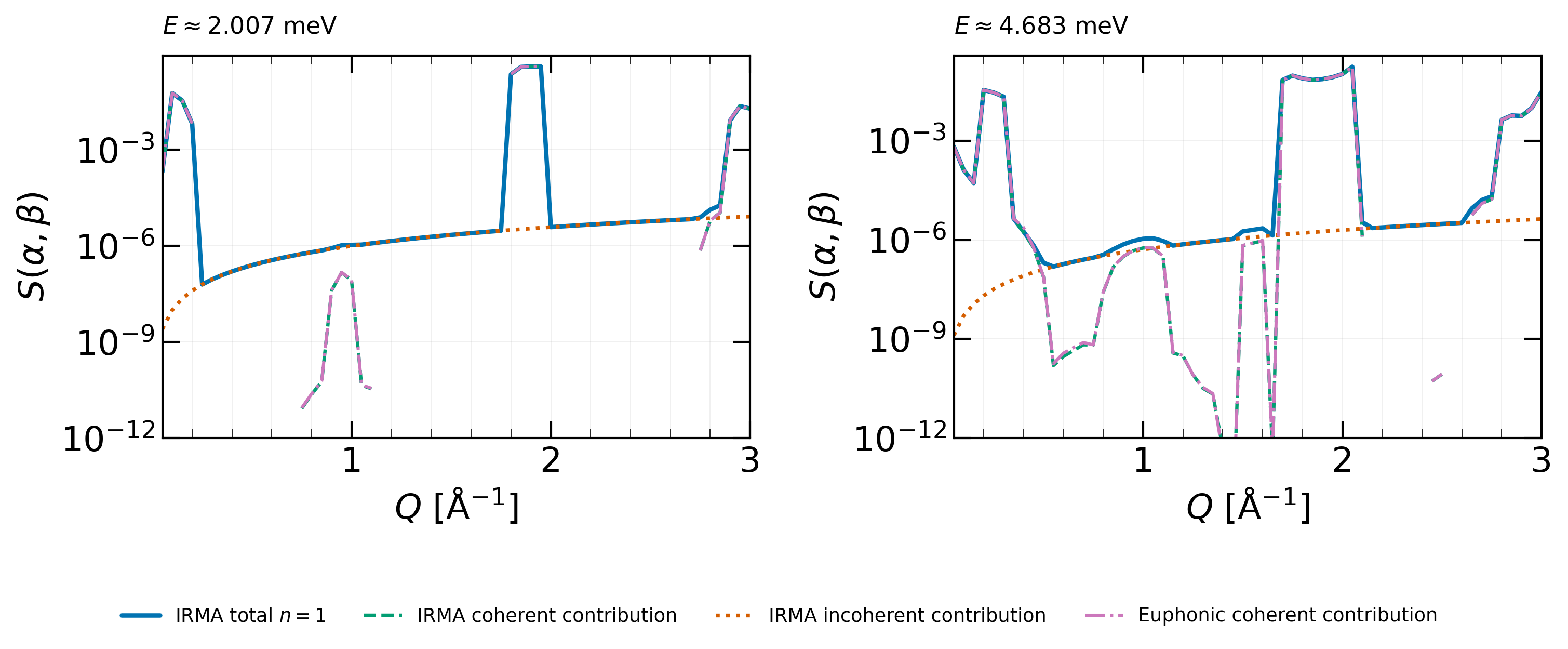

Coherent/incoherent component decomposition of the graphite n=1 S(α,β)

Origin of the low-Q separation: cuts at 2.007 and 4.683 meV (energies of the tabulated grid, no interpolation). The coherent and incoherent components are weighted by their fractions of the total bound scattering cross section, so their plotted contributions add exactly to the IRMA total; the Euphonic coherent curve is given the same coherent weight. At coherent zeros, the small incoherent contribution sets the finite IRMA total.

The Debye-Waller attenuation isolated

Directional vs isotropic Debye-Waller attenuation in the graphite one-phonon S(α,β)

Directional Debye-Waller attenuation in the graphite one-phonon S(α,β) at E ≈ 2 meV and 296 K. Top: raw cuts (symmetric form) on a logarithmic Q axis: IRMA modes 2 and 0, the released OCLIMAX (first-order Debye-Waller approximation), and the unreleased full-tensor variant, all at MAXO=1. Bottom: each result divided by mode 2 after Gaussian smoothing in Q with σ = 1 Å⁻¹.

Against mode 2, the released OCLIMAX is suppressed to approximately 0.48 at Q = 20 Å⁻¹ and 2.3×10⁻⁷ at Q = 50 Å⁻¹; that is, the directional-to-first-order ratio is about 2.1 at the first point and 4.4×10⁶ at the second. The full-tensor variant's ratios at the same points are 1.19 and 0.34. IRMA mode 0 shows the same qualitative roll-off at a different magnitude, as expected: its Debye-Waller factor is fully isotropic, while the released OCLIMAX retains a first-order anisotropic correction. The selected one-phonon feature contributes little to the integrated S(α,β), but the high-Q tail is dominated by the multiphonon orders, which OCLIMAX convolves with a fully isotropic Debye-Waller factor; that attenuation accounts for the few-percent offset in the integral of the full S(α,β) below.


The full S(α,β) against OCLIMAX and the released evaluation

OCLIMAX also provides the complete inelastic S(α,β), one-phonon plus all multiphonon orders. Both codes were run to the same multiphonon order (MAXO=223), and the shared-window integrals of the symmetric-form S(α,β) agree to about 4% (R = 0.96). The order is converged: rerunning the OCLIMAX references at the auto-sized orders the IRMA evaluations themselves chose (217 here; 104 and 102 for beryllium and BeO) leaves every plotted cut and quoted ratio in the validation record unchanged.

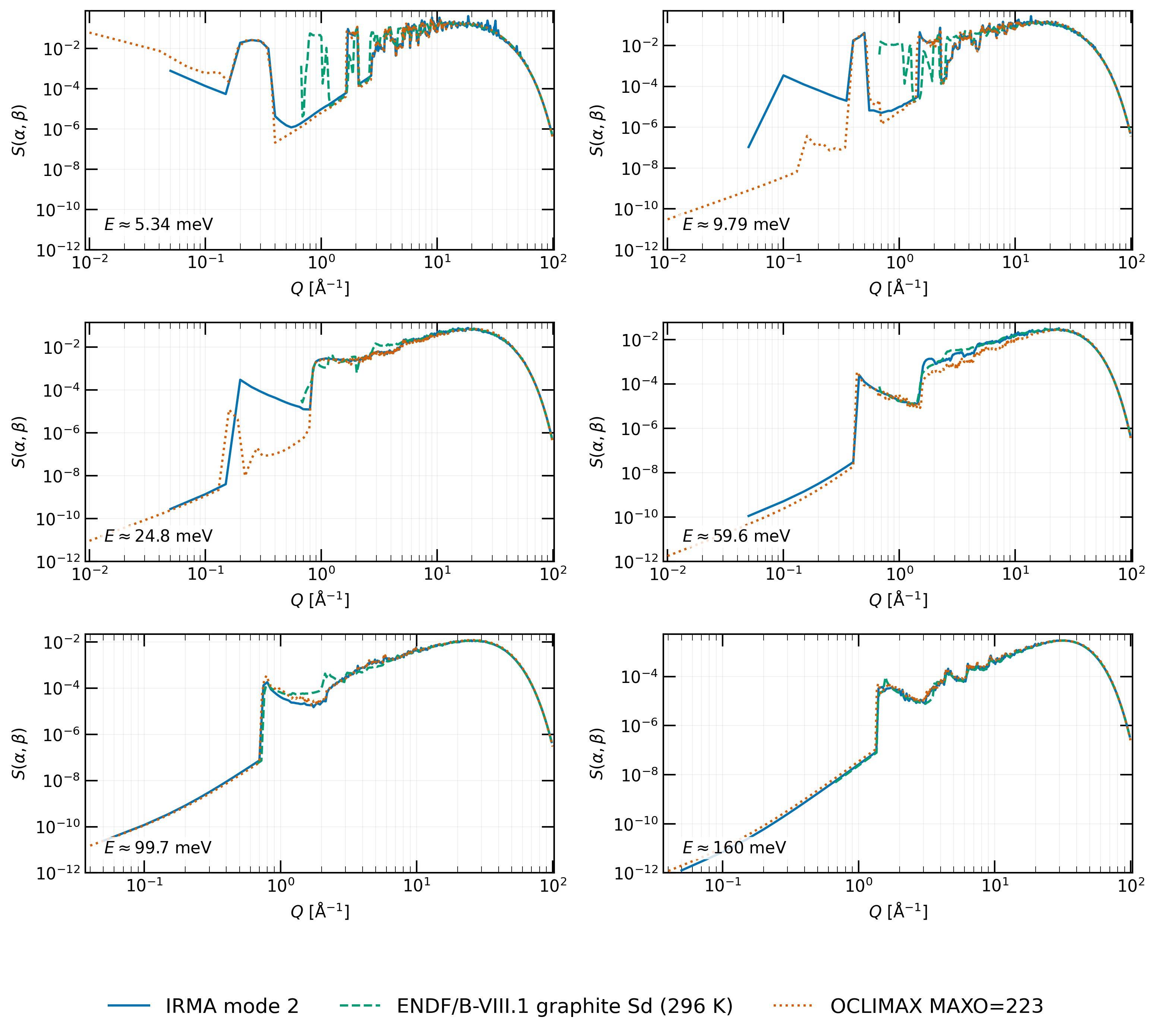

Graphite full mode-2 S(α,β) vs OCLIMAX MAXO=223 and the ENDF/B-VIII.1 graphite+Sd evaluation

Graphite full mode-2 S(α,β) (symmetric form) at 296 K, compared with OCLIMAX (MAXO=223) and the ENDF/B-VIII.1 graphite+Sd evaluation, which was generated with FLASSH from a different phonon calculation.

Three features of the plotted curves deserve comment. First, the evaluated graphite+Sd file is tabulated from a minimum α of 3.1×10⁻³, so at these energies its cuts begin near Q ≈ 0.7 Å⁻¹, well above the lowest Q reached by the calculated curves. Second, the Sd file contains broad spikes between roughly Q ≈ 0.7 and 2 Å⁻¹, at the coherent interference minima where IRMA, OCLIMAX, and the Euphonic one-phonon term all agree on deep near-zeros; the origin of this structure in the evaluation is not established here. Third, the OCLIMAX curves become erratic toward the smallest Q, where each ΔQ shell of the expanded phonon mesh contains only a few modes; the values there change with the shell width and should not be read as physical.

The 4% residual has the same origin as the high-Q separation in the one-phonon cuts: OCLIMAX attenuates with an isotropic, orientation-averaged Debye-Waller factor, IRMA retains the tensor, and the residual accumulates in the high-Q multiphonon tail. Three observations support this attribution. The Q < 4 Å⁻¹ band contributes only about 0.1% of the integral, so the visible low-Q structure is not the source. Mode 1, which drops the coherent one-phonon term but keeps the tensor, gives nearly the same integral ratio as mode 2 (0.951 versus 0.958), so the residual does not come from the coherent term. And mode 0, which uses an isotropic factor as OCLIMAX does, lands on the opposite side of the OCLIMAX integral from the directional modes.


Processed cross sections

Here and below, NJOY processing means the full module chain (RECONR, BROADR, THERMR, ACER), with cross sections extracted at the final VIEWR stage and THERMR carrying the local corrections described on the NJOY interoperability page. The IRMA mode-2 and OCLIMAX S(α,β) tables are processed with lin-lin (INT=2) interpolation, written by IRMA's iint option; the ENDF/B-VIII.1 evaluation keeps its own log-lin flag, which reproduces the published cross section.

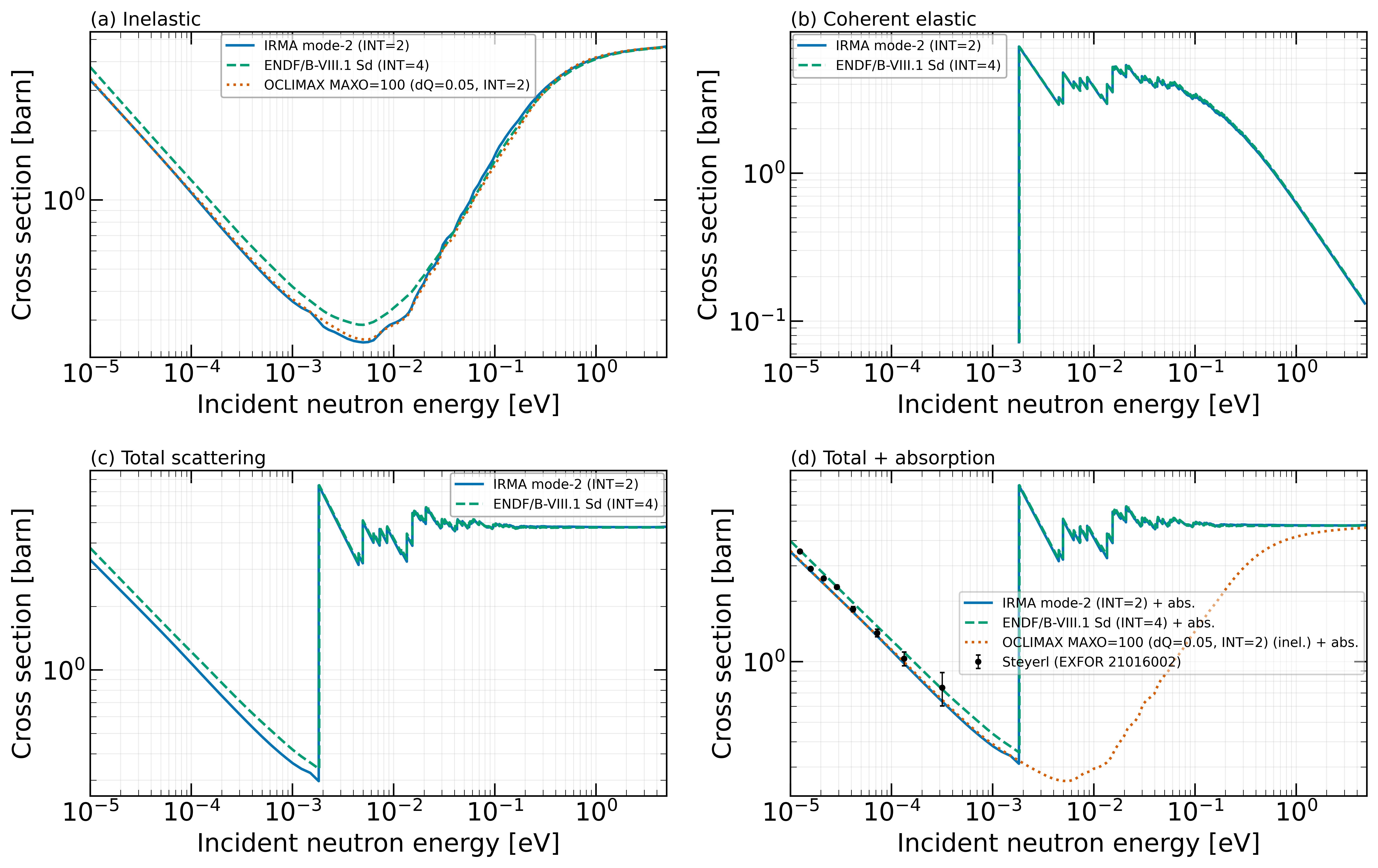

Graphite cross sections from NJOY processing at 296 K

Graphite cross sections at 296 K: IRMA mode 2 and OCLIMAX with lin-lin interpolation, against the ENDF/B-VIII.1 graphite+Sd evaluation on its own log-lin interpolation. Panels: inelastic, coherent elastic, total scattering, and total-plus-absorption with the Steyerl measurement (EXFOR 21016002).

The mode-2 and OCLIMAX curves track each other closely and are both near 0.24 b at the inelastic cross-section minimum, where they differ by about 3%. The interpolation choice matters on production-sized grids: log-lin interpolation floors the deep coherent near-zeros of the tabulated S(α,β), while lin-lin preserves them and raises the cross section at the minimum by about 9% at 296 K and, with thermal broadening, about 6% at 500 K. On a sufficiently dense (α, β) grid the two schemes converge. The same reasoning applies to the graphite+Sd evaluation: its S(α,β) also carries sharp coherent structure, so log-lin is retained only to reproduce the published cross section, and lin-lin processing would raise its cross section in the same way at the minimum and below the Bragg cutoff. For a smooth incoherent S(α,β) such as mode 1's, log-lin remains adequate.

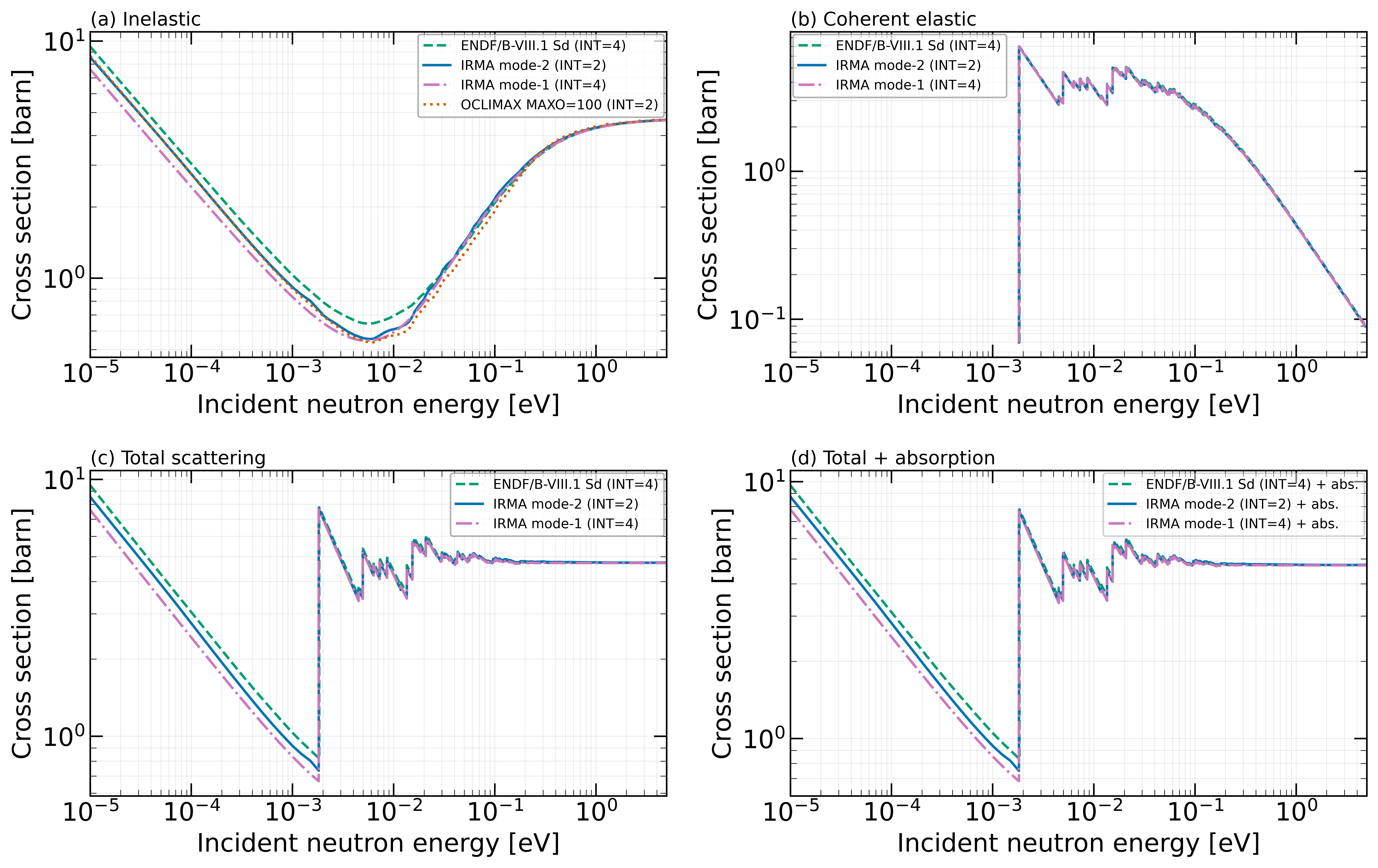

Graphite cross sections at 500 K

The 500 K counterpart, with the same processing and interpolation conventions. The OCLIMAX curve appears in the inelastic panel only.

The processing chain itself is closed against an independent integration: thermr_mimic, a local reimplementation of THERMR's tabulated-S(α,β) cross-section integration, and corrected NJOY THERMR agree to a median of 0.05% and at worst 0.8% on the uniform dQ = 0.05 Å⁻¹ table.

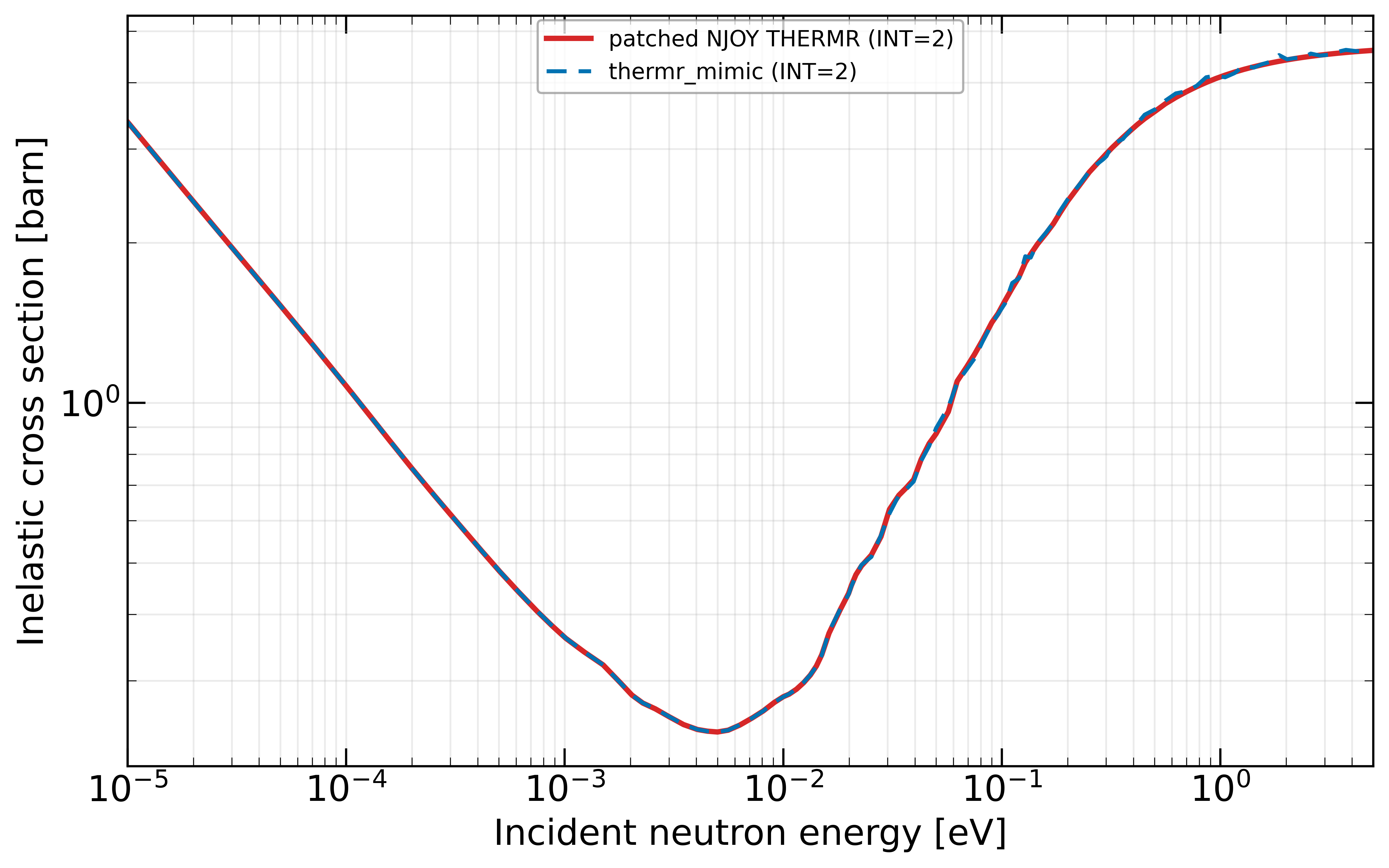

thermr_mimic vs corrected NJOY THERMR closure

Graphite mode-2 inelastic cross section from thermr_mimic and corrected NJOY THERMR on the uniform dQ = 0.05 Å⁻¹ grid; the two curves overlap at this scale.

The α/Q-grid convergence study (automatic grid −0.33% on the 0.01–25 meV integral against the dQ = 0.01 Å⁻¹ reference, 1.2% rms pointwise) lives on the Automatic grids page.

Total cross section at two temperatures and the Steyerl measurement

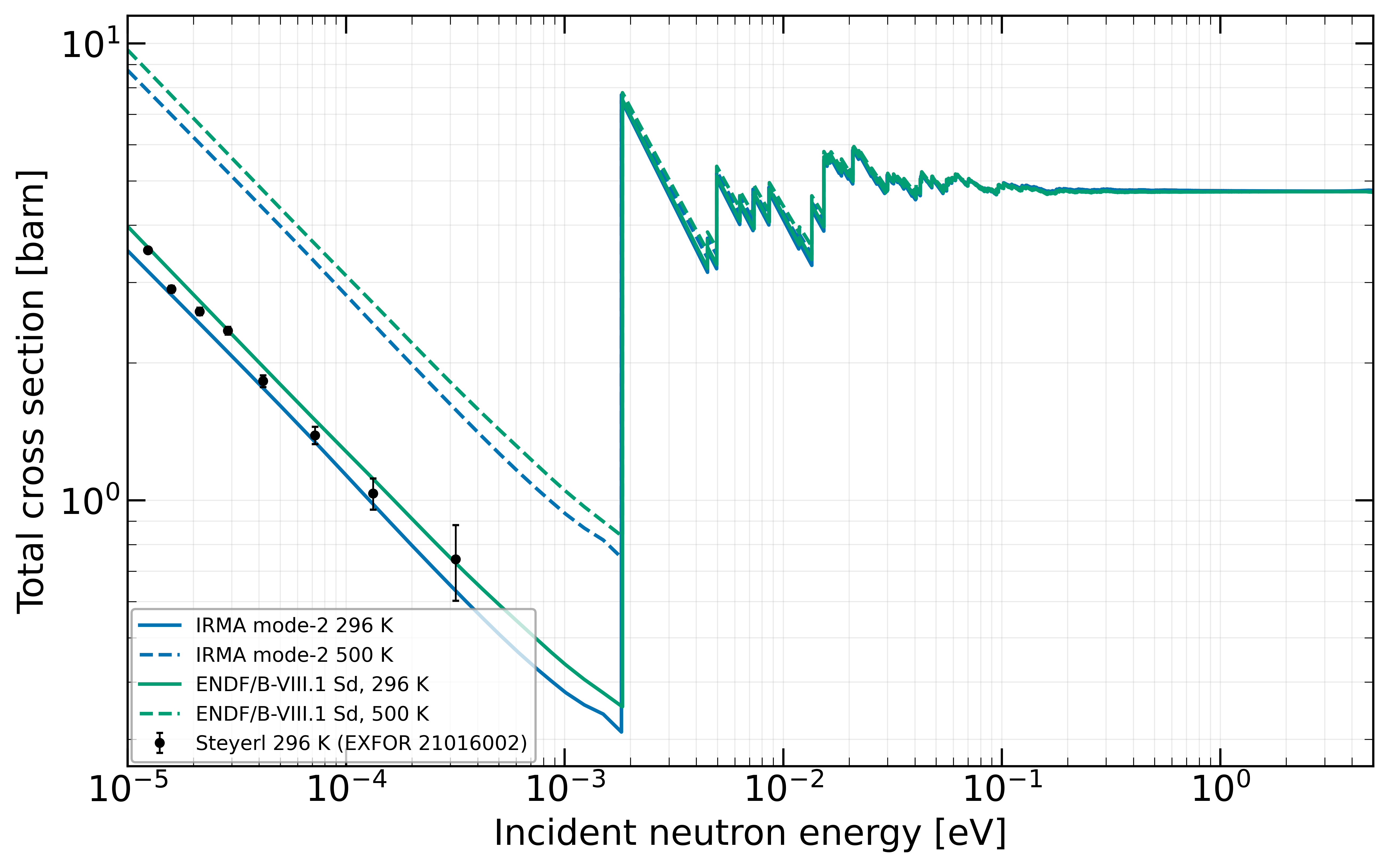

Graphite total cross section at 296 and 500 K with the Steyerl measurement

Graphite total cross section (scattering plus natural-carbon absorption) at 296 and 500 K: IRMA mode 2 against the ENDF/B-VIII.1 graphite+Sd evaluation, with the Steyerl measurement at 296 K (EXFOR 21016002).

The natural-carbon absorption cross section (isotope-weighted C-12 and C-13, taken from the ENDF files distributed with the SCALE code system) is added to every curve for comparison with the transmission-derived measurement; it is not calculated by IRMA. Below the (002) Bragg cutoff at 1.82 meV, coherent elastic scattering is absent, so the measurement tests the sum of the inelastic and absorption contributions. The mean ratio of the calculated total to the eight Steyerl points below the cutoff is 0.930: the calculation runs about 7% below the measurement. The numerical effects quantified above (a −0.33% grid effect and a +0.10% processing effect on the same thermal integral) are far smaller, so the offset lies in the physical inputs: it could come from the phonon calculation, from the measured specimen, or from the transmission measurement itself, and this single comparison cannot tell which.

This comparison holds only below the Bragg cutoff. Above 1.82 meV the measurement contains coherent Bragg scattering, which an inelastic-plus-absorption curve does not; comparing the two across that edge mixes scattering components and gives a meaningless ratio.


End to end against measured spectra: VISION and ARCS

The same graphite phonon calculation drives the instrument forward model and is overlaid on measurements of IG-110 nuclear graphite on the indirect-geometry VISION spectrometer and of G347A nuclear graphite on the direct-geometry ARCS spectrometer, both at the Spallation Neutron Source. These comparisons test peak positions, spectral shape, and their temperature or momentum dependence; they do not test absolute intensity, so each comparison carries a stated normalization, given at its figure.

VISION

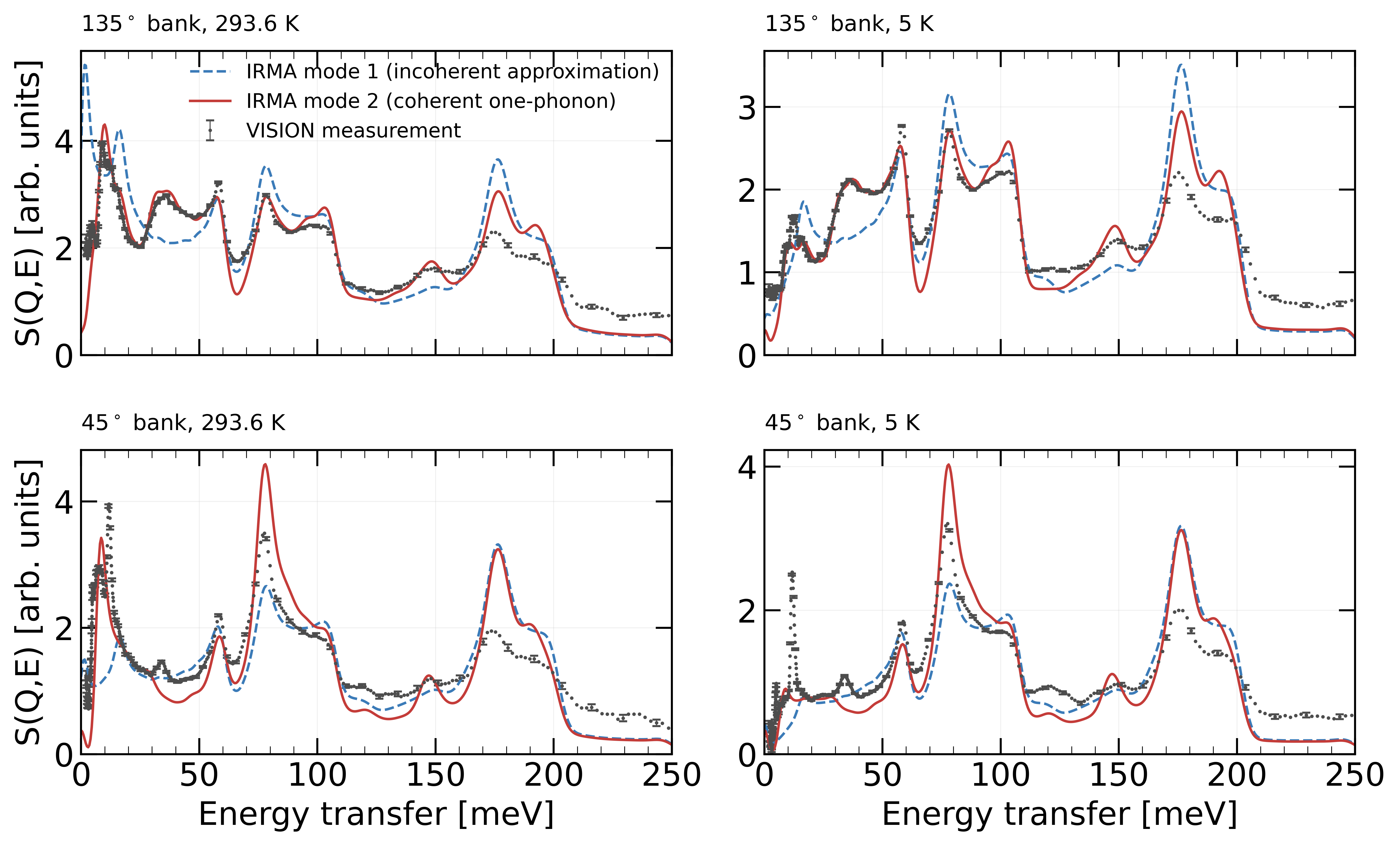

VISION spectra of IG-110 graphite vs IRMA mode 2 and mode 1 at 293.6 and 5 K

VISION spectra of IG-110 graphite in the 45° and 135° detector banks (gray points, drawn every sixth point) and IRMA mode 2 (red) and mode 1 (blue dashed) at 293.6 K (left) and 5 K (right). Each calculated curve is scaled by the ratio of the measured to its calculated 30–220 meV integral; peak positions are not adjusted.

The calculations are folded with a Gaussian response of standard deviation σ(E) = 1.5294 + 0.009967 E + 9.814×10⁻⁷ E² meV, which combines the published VISION resolution with an empirical contribution chosen from the measured 58, 78, and 175 meV line widths; the coefficients are user-settable. The forward model predicts relative intensities only: it projects S(α,β) onto the instrument's kinematics and resolution, and it models nothing else about the measurement. The measured count rate, the amount of sample in the beam, self-shielding, multiple scattering, and the instrument background are all outside the calculation. Each calculated curve is therefore scaled once, by the ratio of the measured to its own calculated 30–220 meV integral; absolute scattering is tested separately by the cross-section comparisons above.

The calculated spectra reproduce the measured peaks at 58, 78, 105, 147, and 175 meV. The peak positions are a parameter-free prediction of the phonon calculation, and near 175 meV they agree to about 1 meV, better than one percent. The calculated peaks are slightly broader than the measured ones; since the calculated widths are set mainly by the response function, this points to the chosen response rather than to the phonon calculation. The difference between the two calculated curves is the coherent one-phonon term: mode 2 follows the measurement more closely, most visibly at low energies in the 135° bank, where mode 1 puts intensity in the wrong places; at the 78 meV peak in the 45° bank, mode 2 overshoots the measurement and mode 1 undershoots it. Above about 205 meV, the highest phonon energy in the model, one-phonon scattering ends; the intensity measured there comes from multiphonon scattering and instrument background, and the calculation includes the multiphonon part but not the background.

ARCS

The mode-2 powder maps are compared with the ARCS data of G347A nuclear graphite at 300 K and incident energies of 300, 215, 130, and 30 meV, reduced with Mantid (the neutron data-reduction framework) into 0.25° polar-angle groups with the k_i/k_f factor applied. The resolution model uses the recorded chopper state: the ARCS-700-1.5-AST package at 600 and 540 Hz for E_i = 300 and 215 meV, and the ARCS-100-1.5-AST package at 600 and 300 Hz for E_i = 130 and 30 meV.

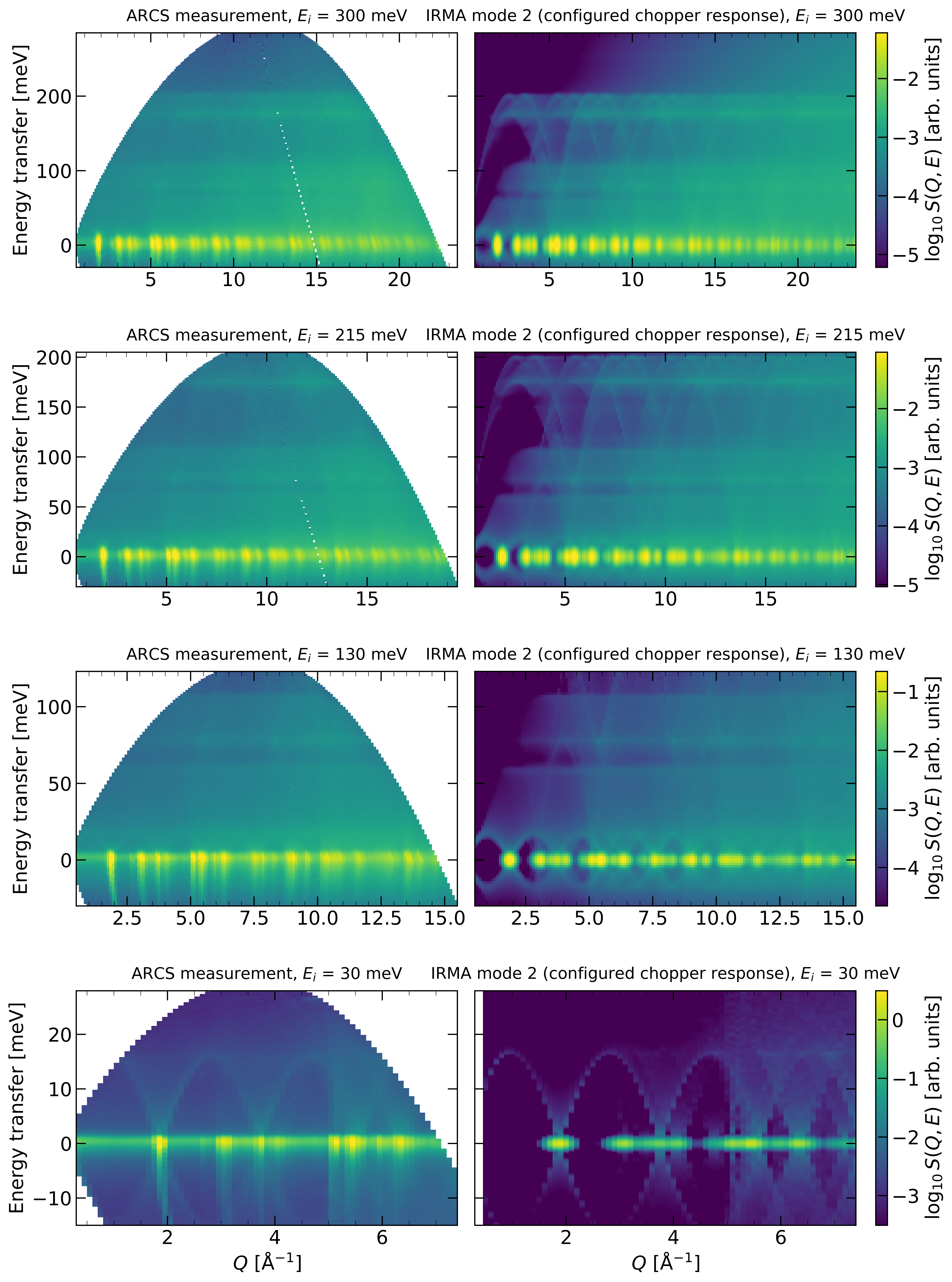

Measured ARCS S(Q,E) maps vs IRMA mode-2 single-scatter calculations

Measured ARCS S(Q,E) maps of IG-110 graphite at 300 K (left) and the IRMA mode-2 single-scatter calculations (right) for E_i = 300, 215, 130, and 30 meV. Within each row the two maps share a logarithmic color scale after the calculation is scaled to the measured intensity over the 0.3–0.8 E_i band. The calculated elastic line uses the same Debye-Waller factors as the inelastic calculation.

At E_i = 30 meV, both maps show the acoustic cones emerging from the powder Bragg positions, and the prominent acoustic and optical bands appear in the same (Q, E) regions at the higher incident energies. This is a visual comparison of where the intensity lies; no dispersion curves were extracted from the maps or fitted. The measurement also contains diffuse intensity between the cones, most clearly at 30 meV, consistent with the multiple scattering and background that the single-scatter forward model does not include.

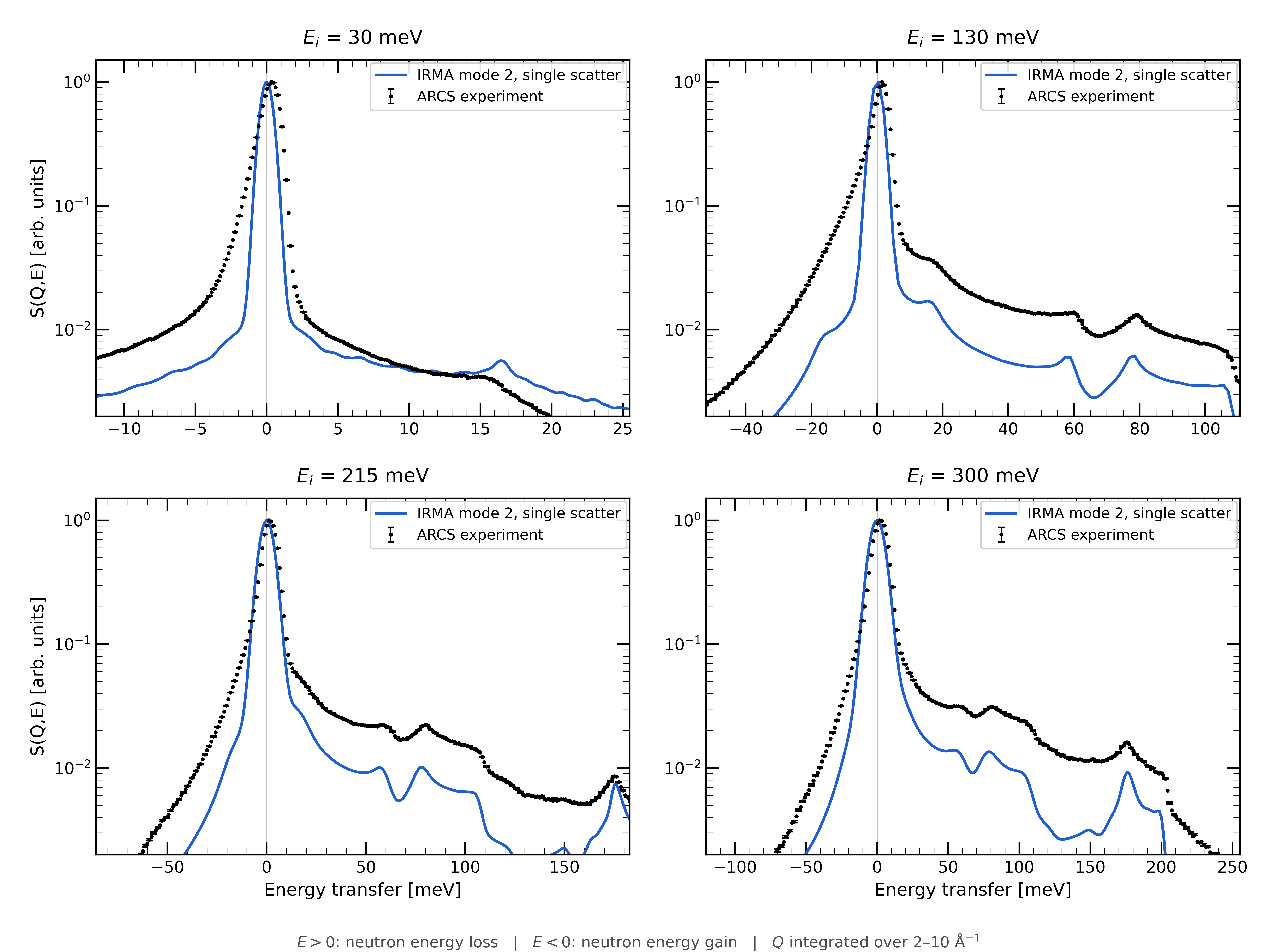

ARCS energy cuts, experiment vs IRMA mode 2

Energy cuts integrating the maps over 2 ≤ Q ≤ 10 Å⁻¹. Each measured and calculated curve is independently normalized to its own elastic peak and plotted on a logarithmic scale; both energy-gain (E < 0) and energy-loss (E > 0) sides are shown.

Because every curve is normalized to its own elastic peak, the cuts compare the inelastic-to-elastic line shape. The calculated elastic line is a symmetric Gaussian, whereas the measured one is asymmetric, with a tail toward the energy-gain side inherited from the moderator pulse, so the two line shapes differ near the elastic peak by construction. Peaks identified in both the measured and calculated cuts agree in position to within 2.8 meV, and part of that offset is instrumental: the measured elastic line itself sits not at zero but at +0.4 to +2.6 meV, and the offset grows with incident energy, consistent with moderator emission-time and chopper-phasing delays that the nominal time-to-energy conversion does not include. The McStas simulations below, which model the moderator and choppers, reproduce the shift at +0.3 to +2.3 meV. On the energy-loss side, the 58 and 78 meV peaks and, when kinematically accessible, the optical peak near 175 meV follow the measurement. On the energy-gain side the model generates intensity through Bose annihilation, but the measured intensity is larger: the calculated-to-measured gain-side area ratios are 0.33, 0.29, 0.63, and 0.85 for E_i = 30, 130, 215, and 300 meV. Because each curve was first normalized to its own elastic peak, these are line-shape ratios, not absolute cross-section ratios; the deficit is consistent with multiple scattering and background omitted from the single-scatter calculation, which the McStas comparison examines next.

ARCS through McStas: the transport application

The mode-2 evaluation was also tested after export to the companion NCrystal plugin. A 300 K material data file (produced with 4000 coherent and 1000 incoherent/multiphonon directions, predating the 10000/1000 campaign sampling) was loaded into an ARCS McStas model. The graphite plate was represented by its measured dimensions, 39.6 × 50.0 × 4.00 mm³, a bulk density of 1.80 g/cm³ derived from its 14.25 g mass, and a 30 × 45 mm² incident beam; the model did not include the sample environment present in the measurement (the aluminum cryostat, sample holder, and sample stick). The stock-NCrystal comparison curve uses the phonon spectrum behind the ENDF/B-VIII.0 crystalline-graphite evaluation (carried into ENDF/B-VIII.1 as the non-Sd variant), so it differs from the phonon calculation in the IRMA material data files. These comparisons are qualitative; no intensity χ² was calculated.

Measured and simulated ARCS maps: experiment, IRMA analytic, McStas stock NCrystal, McStas IRMA plugin

Measured and simulated ARCS maps at 300 K. Rows are E_i = 300, 215, 130, and 30 meV; columns show the measurement, the IRMA analytic single-scatter calculation, McStas with stock NCrystal graphite (incoherent approximation), and McStas with the IRMA plugin. Each calculated map is scaled independently to the corresponding measured map.

At E_i = 30 meV, the plugin calculation resolves the coherent acoustic cones in the low-Q powder-scattering region, where the incoherent approximation produces a smooth continuum; coherent band structure remains visible at the higher incident energies. Resolving the cones requires an exported energy spacing of about 0.15 meV; coarser sampling washes out the dispersion. Because each calculated map is scaled independently, the comparison tests the morphology of the intensity in (Q, E), not absolute magnitude or the relative normalization of the three models.

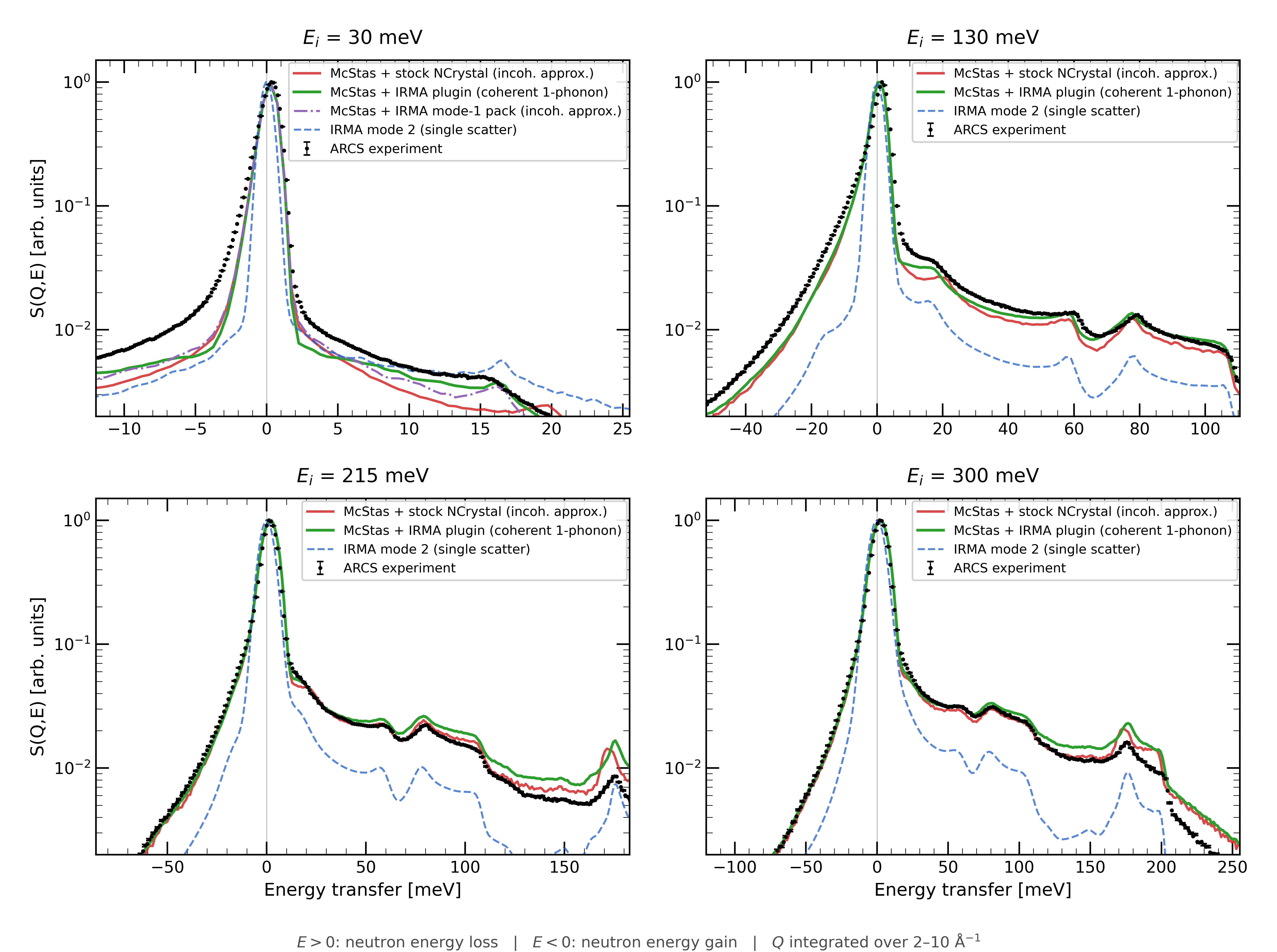

ARCS cuts: experiment, IRMA single-scatter, McStas stock, McStas IRMA plugin

ARCS cuts integrated over 2 ≤ Q ≤ 10 Å⁻¹ at E_i = 30, 130, 215, and 300 meV: the measurement (black points), the IRMA mode-2 single-scatter calculation (blue), McStas with stock NCrystal graphite (red), and McStas with the IRMA plugin (green). Every curve is independently normalized to its own elastic peak. The E_i = 30 meV panel adds McStas with the IRMA mode-1 material data file (purple dash-dotted).

Because the McStas simulations model the moderator pulse and choppers, they reproduce the measured elastic line better than the analytic Gaussian: most of its asymmetric tail and its energy offset. Both McStas calculations place more relative intensity in the inelastic continuum and on the energy-gain side than the analytic single-scatter result, and this reduces the deficit identified in the cuts above; because of the independent normalization, their difference is not an additive estimate of multiple scattering or other beamline contributions. The E_i = 30 meV panel adds a same-model test of the coherent one-phonon term in transport: a mode-1 material data file exported on the same grids and run with identical beamline settings, so only the physics mode differs. Both IRMA modes produce the measured feature near 16 meV; stock NCrystal places its counterpart near 20 meV, so the position is set by the phonon calculation rather than by the scattering treatment. With the phonon calculation fixed, the coherent one-phonon treatment improves the shape: mode 2 follows the measured continuum up to the feature and comes closest to its intensity, while mode 1 dips below the data just before it.

Two discrepancies remain, one at each end of the energy-transfer range. First, at E_i = 215 and 300 meV, both McStas calculations exceed the measurement at the largest energy transfers after peak normalization: integrated over 0.6–0.85 E_i, the excess is about 33% for stock NCrystal and 48–57% for the IRMA plugin. Its cause is unresolved; the calculation does not distinguish errors in the graphite multiphonon or Debye-Waller treatment, sample orientation, omitted sample-environment scattering, and the simulated multiple-scattering contribution. Second, at E_i = 30 and 130 meV, neither simulation reproduces the tails of the measured elastic peak. A similar excess occurs in facility vanadium calibration runs with the same chopper settings, which supports an instrumental origin associated with the 100-series Fermi-chopper transmission rather than a graphite-scattering feature.


What the graphite suite establishes

The classic kernels reproduce the published tape to 3.4×10⁻⁵ across ten temperatures. The directional one-phonon term agrees with Euphonic to a shared-domain integral ratio of 1.00001 (coherent component against coherent component), and the high-Q suppression in isotropic codes is attributed to the isotropic Debye-Waller approximation, an attribution supported by a controlled mode-0 comparison. The full mode-2 S(α,β) tracks order-matched OCLIMAX to 4%, with the residual in the high-Q multiphonon tail, where the Debye-Waller conventions differ. The processed cross sections track OCLIMAX to about 3% at the inelastic minimum, the processing chain is closed to 0.05% median against corrected THERMR, and the numerics are converged well below the 7% offset against the Steyerl total, an offset that lies in the physical inputs and that this comparison alone cannot narrow further. Finally, the same phonon calculation, driven through the forward model and through McStas transport, reproduces the measured VISION peak positions to about 1 meV and the measured ARCS map morphology, with the coherent one-phonon treatment (mode 2) measurably closer to the data than the incoherent approximation in backscattering and in the transport cuts.
